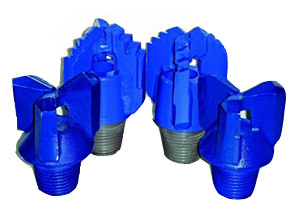

MEC drag bit are suitable in soft to middle hard formation, are manufactured as one piece, from forged steel, with sintered tungsten carbide inserts on the cutting edges.
Drag bits are extremely popular choice for seismic drilling, blast hole drilling and geothermal drilling applications.

• •  Bits fabricated are welded with high tensile strength material
• •  Drag bits are welded solid for durability
• •  Blades originate from 4140 heat-treated tool steel forgings
• •  Forgings are milled to better seat the carbide inserts
• •  Relief is hand ground behind carbide inserts for maximum performance
• •  Bits can be built to the gauge tolerances required

Step Type Bit
They are primarily designed for soft to medium formations, more aggressive than chevron, record of production will he higher.

Chevron Type Bit
Theyare designed for medium to hard formations, more durable than the step, because of cutting structure, will penetrate more slowly

DRAG BIT SIZES 2 7/8" to 18"
AVAILABLE THREADS 2 3/8", 2 7/8", 3 1/2", 4 1/2", 6 5/8" API Regular Pin
